Stainless Steel Wires

  • Size Range : 0.80 mm to 12.00 mm (0.031” to 0.472”)
  • Grades : 201 (0.9%Ni), 201 (3%Ni), AISI 201, 204Cu, 301, 302, 302HQ, X M7, 303, 303Cu, 304, 304HC, 304L, 305, 310S, 314, 316, 316 (2.5Mo), 316L, 316LVM, 316Ti, ER317L, ER318Si, 321, 321H, 347, 347H, ER307Si, ER308, ER308L, ER308Lsi, ER308L (Low% Si), ER309, ER309L, ER309Lsi, ER310, ER312, ER316L, ER316Lsi, ER316L (Low% Si), ER630, 409, 410, 410NiMo, 420A, 420B, 420C, 420 Mo, ER420, 430, 430L, 430LNb, 430F,430F DIN, 2205, 2209, 2594, Alloy 82 (ERNiCr-3), 904L, Nickel 200, Alloy 600, Alloy 625, C-276, Alloy 20, Alloy 825, 631 (17-7PH), Alloy 400, A 286
  • Tolerance : h9 or as per customer requirement.
  • Surface Finish : Soft Annealed, ¼ Hard, ½ Hard Full Hard (Matte / Soap Coated or Bright Finish)

Types of Stainless Steel Wire

  • EPQ Wire/ Bright Wires
  • Wires for Wall tie/Tying Wire
  • Rope Wires
  • Wires for Welding Electrodes
  • Wires for Fasteners
  • Nail Wires
  • Wires for Steel Balls
  • Spring Wires
  • Wires for Staples
  • Cold Heading Wires
  • Wires for Shot Blast
  • Wire for Conveyor Belt/Filter
  • Wires for Chain
  • Wires for Screens
  • Kitchenware / Basket
  • Reed wire

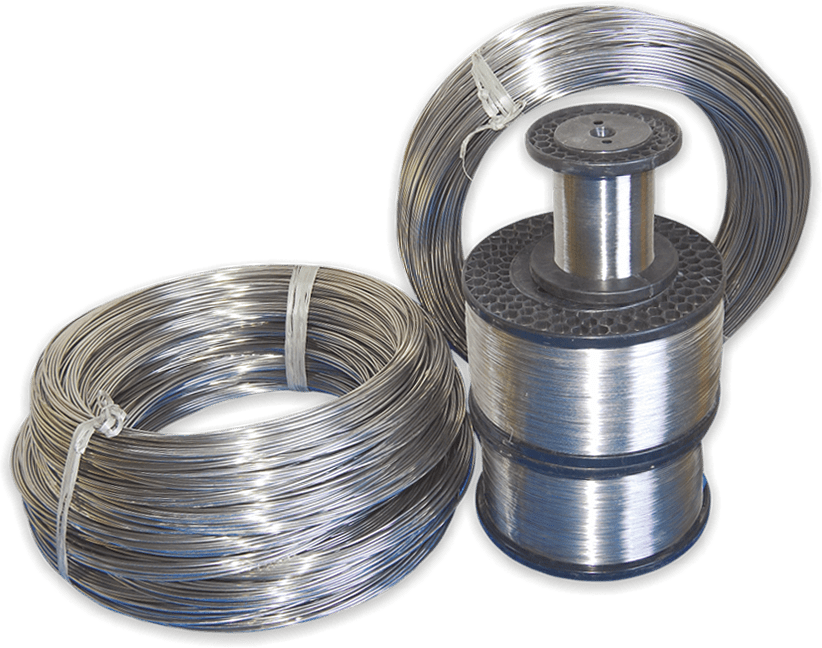

steel-wire

Dimensional tolerances

RATANAKAR supplies Stainless Steel Wires as per the tolerance given below:

Standard Tolerance on wire diameter

Diameter Tolerance
0.80 mm (0.031”) to < 1.25 mm (0.0492”) +/- 0.012 mm (0.0005”)
1.25 mm (0.0492”) to < 2.00 mm (0.0787”) +/- 0.015 mm (0.0006”)
2.00 mm (0.0787”) to < 3.25 mm (0.1280”) +/- 0.020 mm (0.0008”)
3.25 mm (0.1280”) to < 4.75 mm (0.1870) +/- 0.025 mm (0.0010”)
4.75 mm (0.1870”) to ≤12.00 mm (0.472”) +/- 0.040 mm (0.0015”)
